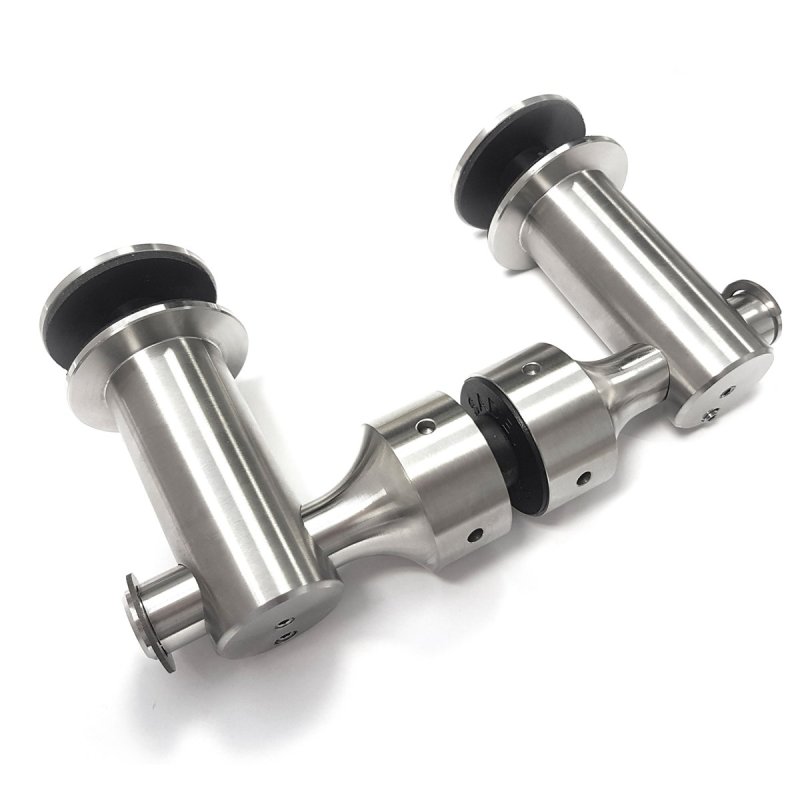

Glass Canopy Hook Bolts Double For 10-26mm Glass

? Point Supported “Hook” system for facade.

? 316 stainless stee double attachment.

? Alternative to traditional spider + rotule.

? Simple design.

? The hook system allows for rotation around the pin axis and horizontal movement.

? Glass attachment body is attached to the glass and the panels hook onto the pin.

Hook System allows you to gather your glass panels for facades, glass fins, or canopies.

This product is a single or double 316 stainless steel fitting (button head or countersunk head) connecting glass panels to the structure for a modern and transparent final result.

Hook System suits to 10mm to 26mm glass thicknesses.

This solution has been developed for a quick and easy installation.

In order to guarantee effective resistance and security, bending tests have been set in 2011.

– Serviceability Limit State: 1 mm deformation = 1027 daN.

– Ultimate Limit State: load at the elastic limit (Rp0.1) = 1272 daN.
