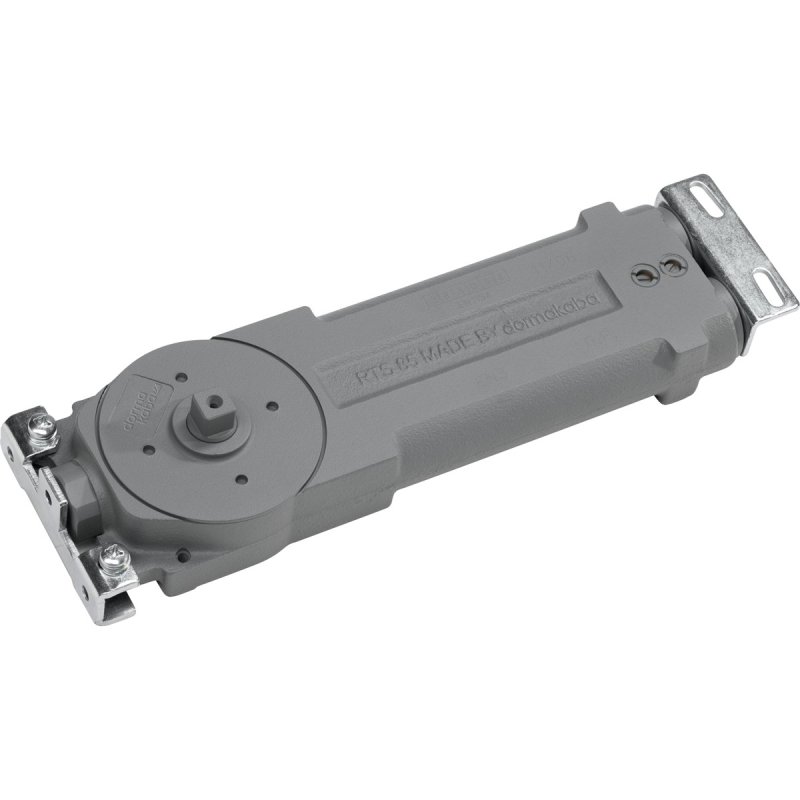

RTS85 Transom Closer

The DORMA RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. A complete line of accessories is available to accommodate virtually any door and frame configuration.

• Door closer hidden in the door frame
• Door widths up to 1100mm
• For single and double action doors
• One closer body for all types of fixing
• Wide range of accessories for almost every configuration
• Optional 90 Degree hold-open
• Standard or 5mm Extended Spindle

Benefits for the trade/distributor

Just one closer body for all types of fixing

Low inventory costs and minimal stocking requirement thanks to unit packs for closer body and accessories

Benefits for the installer/fabricator

Can be used for double action doors, or left and right hand single action doors

Installation and setting adjustment possible before installing the doorset on site

No floor preparation necessary

Positive 'zero' position for double action doors - easy to adjust

Comprehensive range of accessories

Benefits for the architect/specifier

Aesthetically impressive solution - especially with toughened glass doors

Ideal for shopfitting applications

Benefits for the user

No cluttering of door or floor appearance

Backcheck to prevent door contact with frame

Smooth closing with adjustable closing speed

Specifications

Spring Strength - EN 4

Max. Door Width - 1100mm

Features - adjustable sweep speed, adjustable latching action, optional fixed backcheck, cushioned backstop

Certification - CE marked, tested to BS EN 1154
