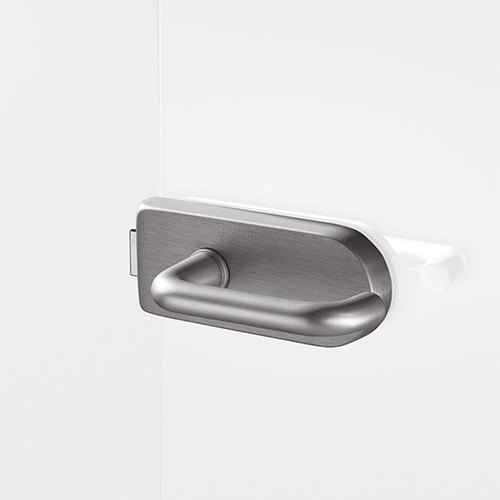

STUDIO Rondo Lock Profile Cylinder & OFFICE Classic Hinge Set

With their slender shape and elegant design, STUDIO Rondo glass interior door fittings optimally accentuate the special character and transparency of the glass doors. The extended colour range offers a wide scope for design.

Advantages

• Whisper-comfort noise reduction for quiet door closing
• Customisable handle position
• Spring-supported clamp nut for exact handle positioning
• Existing frames can be used
• Long Lifetime - 200,000 motion cycles of the latch function and the bolt were tested
• According to EN 12209

Specifications:

• Glass Type: TSG
• Glass Thickness: 8mm (in frames with 24mm rebate depth), 10mm (in frames with 26mm rebate depth; with special latch on request for frames with 24mm rebate depth)
• Max Leaf Weight: Up to 80kg
• Lock Design: Profile cylinder
• Material: Aluminium, Brass
• Surface: Anodised Satin or Silver Finish
• Applications: 1 or 2 panels, sidelight

Set Includes:

• 1 x STUDIO Rondo Lock Profile Cylinder
• 2 x OFFICE Classic Hinges and Sleeves
• 2 x Frame Parts for Wooden Frame

Please see available downloads for more information.

This kit does not include door lever/handle
