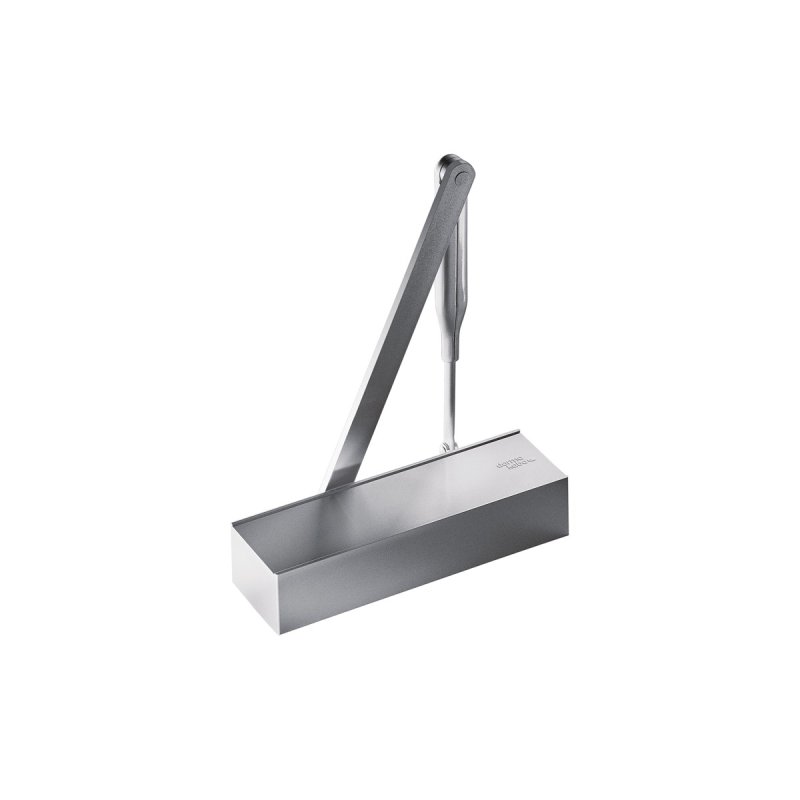

TS72 Rack & Pinion 1100mm Door Closer (Complete Unit)

The DORMA TS 72 V is the ideal multipurpose door closer for all standard door designs and constructions, it is particularly easy and quick to fix. The spring strength can be individually adapted to the door size by means of an adjusting screw.

• One model for all standard doors
• Door widths up to 1100mm
• With or without 'thinking' backcheck
• Compact construction with timeless design
• For single and double leaf doors

Benefits for the trade/distributor

One model for all standard doors

Universal door closer, non handed

Benefits for the installer/fabricator

Non-handed design

Closing force, closing speed and latching action can be easily adjusted

Benefits for the architect/specifier

Outstanding value for money

Compact construction combined with timeless design

Benefits for the user

Constant closing speed virtually unaffected by temperature fluctuations

Smooth door action thanks to high mechanical efficiency

Specifications

Finish - Silver

Spring Strength - EN 2-4 (Adjustable)

Type - Without 'Thinking' Backcheck

Max Door Width - 1100mm

Features - Adjustable Sweep Speed, Adjustable Latching Speed

Certification - CE Marked, Successful Independently Tested to BS EN 1154, ITT120 MM/IMM240
