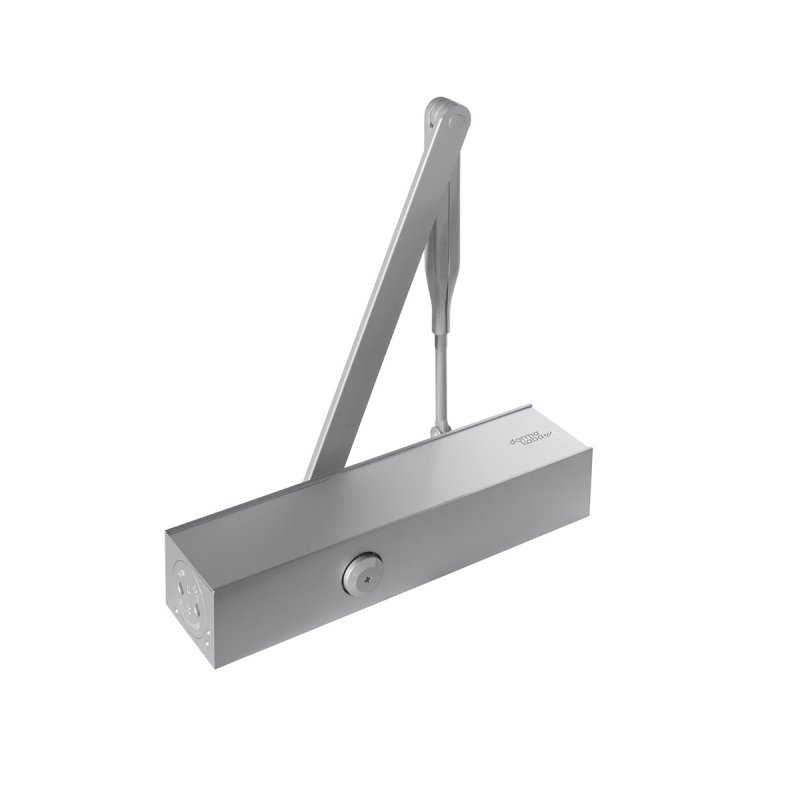

TS73 V Rack & Pinion 1100mm Door Closer (Complete Unit)

Specially designed for internal doors, including fire doors, the DORMA TS 73 V is a universal solution for doors of differing designs and styles. The flat and compact format of the TS 73 V means that there are practically no problems with installation; and tried and trusted quality is your assurance of reliability.

• One model for all applications
• Door widths up to 1100mm
• With adjustable 'thinking' backcheck
• Quick and simple installation
• For single and double leaf doors

Benefits for the trade/distributor

One model for all applications

Really practical solutions for special installation situations, thanks to the wide range of accessories

Benefits for the installer/fabricator

Quick and simple to fix; closing force, closing speed, and latching action all set with just a few manual adjustments

Only one design for left and right hand doors, and for door leaf and frame fixing

Benefits for the architect/specifier

Compact format in timeless design

Attractively priced solution with optimum reliability

Wide range of applications

Benefits for the user

Optimum wall and door protection thanks to 'thinking' backcheck

Constant closing speed virtually unaffected by temperature fluctuations, with adjustable latching action

Smooth door action thanks to high mechanical efficiency

Specifications

Finish - Silver

Spring Strength - EN 2-4 (Adjustable)

Type - With 'Thinking' Backcheck

Max Door Width - 1100mm

Features - Adjustable Sweep Speed, Adjustable Latching Speed

Certification - CE Marked, Successful Independently Tested to BS EN 1154, ITT120 MM/IMM240
