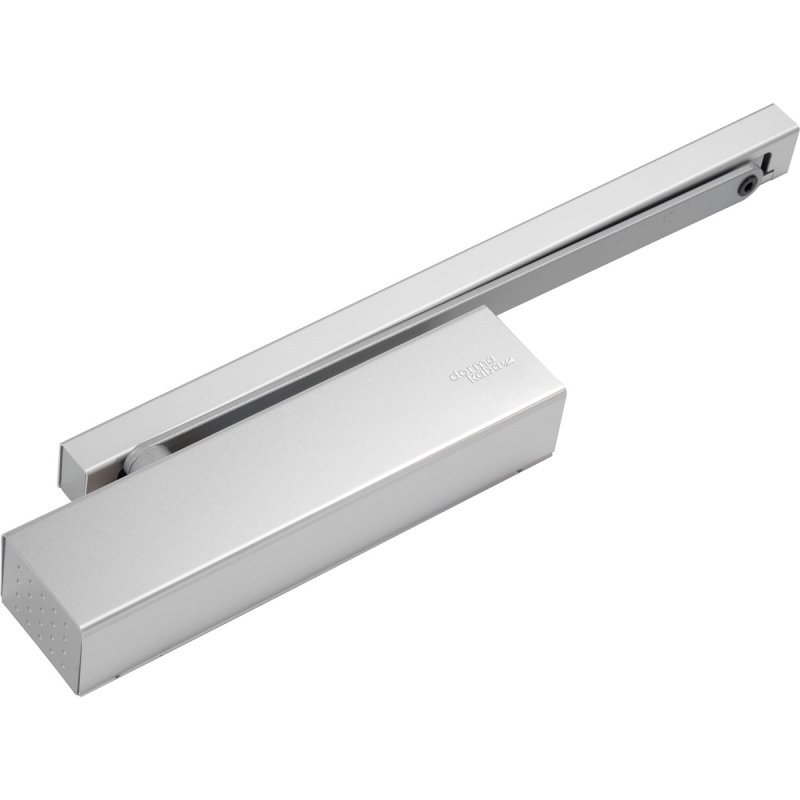

TS92B Cam Action 1100mm Door Closer Body - Pull Side - Silver

Designed especially for interior applications the DORMA TS92 features the unique Cam action technology and the award winning Contur design for enhanced aesthetics, making this closer an ideal choice for any interior project.

• Perfect for interior applications
• Door widths up to 1100mm
• Power adjustable
• Easy installation
• Quickly adjustable
• For single and double leaf doors

The Perfect Choice for Interior Doors

This particular model has a spring strength of EN 2-4 (adjustable), is suited to a max door width of 1100mm and is to be installed on the pull side of the door.

SLIDE ARM AND CHANNEL NOT INCLUDED

The DORMA TS92 in Contur design provides the perfect solution for interior doors. With its cam action mechanism, high efficiency and adjustable power the TS92 provides exceptional ease of operation by all users whilst providing full and secure closing of the door.

Benefits for the User

Low opening forces for ease of opening

Reliable and controlled closing

Benefits for the Trade / Distributor

Adjustable power enables suitability on a wide range of doors

Reduced inventory thanks to uniform slide channels of the Contur Cam Action Series

Benefits for the Installer / Fabricator

Non-handed

Mounting plate with universal hole pattern ensure optimum fixing

Power adjustable

Benefits for the Architect / Specifier

High quality design

Available in a wide range of finishes

Harmonious appearance within the Contur Range of Cam action door closers

Specifications:

Finish - Silver

Spring Strength - EN 2-4 (Adjustable)

Door Type - Pull Side

Max Door Width - 1100mm

Features - Adjustable Sweep Speed, Adjustable Latching Speed

Certification - CE Marked, Successful Independently Tested to BS EN 1154, ITT120 MM/IMM240
